Description
These TI NE555 timing/oscillator ICs are precision timing circuits capable of producing accurate time delays or oscillation. In the time-delay or mono-stable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the a-stable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors, and a single external capacitor.
The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels can be altered by use of the control-voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset and the output is low. The reset (RESET) input can override all other inputs and can be used to initiate a new timing cycle. When RESET goes low, the flip-flop is reset, and the output goes low.
When the output is low, a low-impedance path is provided between discharge (DISCH) and ground. The output circuit is capable of sinking or sourcing current up to 200 mA. Operation is specified for supplies of 5 V to 15 V. With a 5-V supply, output levels are compatible with TTL inputs.

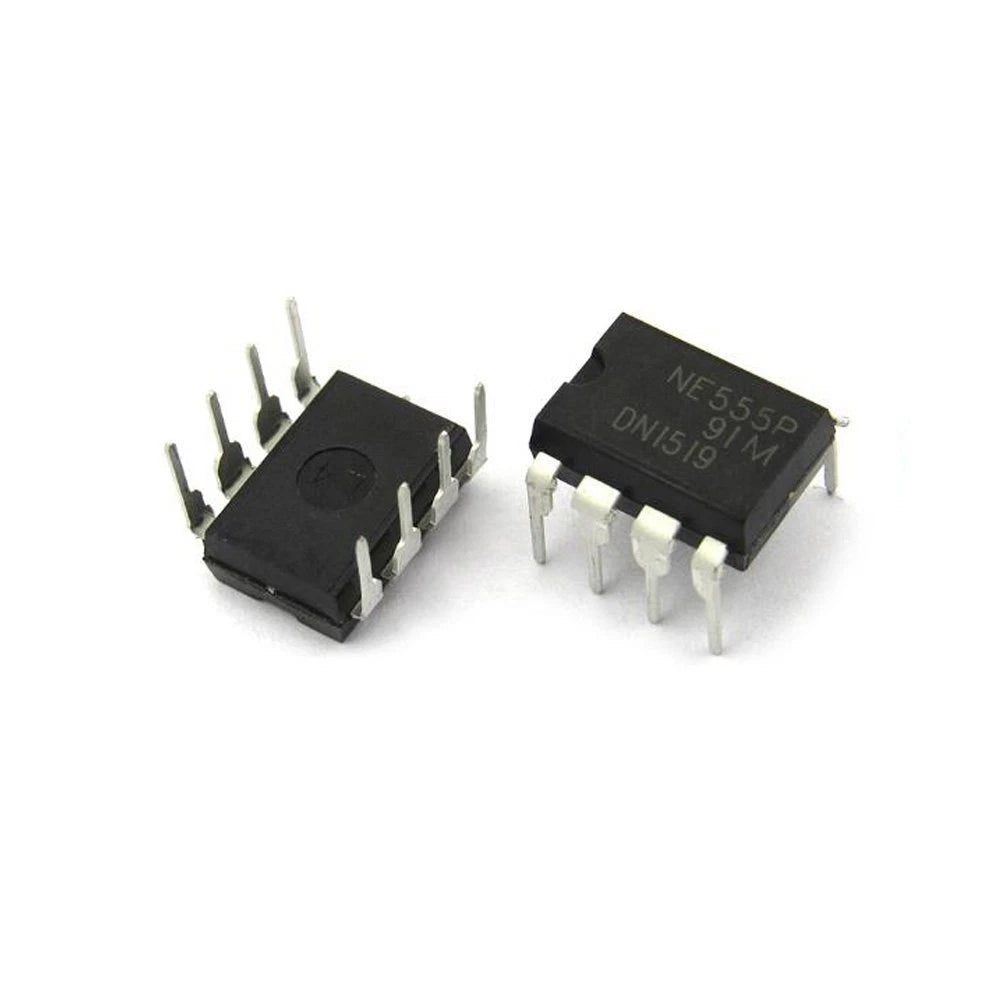

These are genuine, factory-sourced TI (Texas Instruments) NE555P devices.
Features:
- Timing From Microseconds to Hours
- Astable or Monostable Operation
- Adjustable Duty Cycle
- TTL-Compatible Output Can Sink or Source Up to 200 mA
NE555P Specifications:
- Supply Voltage (Vcc): 4.5V to 16V DC
- Input Voltage (Vi) (CONT, RESET, THRES, and TRIG): Vcc
- Output Current (Io): +/-200mA
- Operating Free-Air Temperature: 0 to 70 C (32 to 158 F)

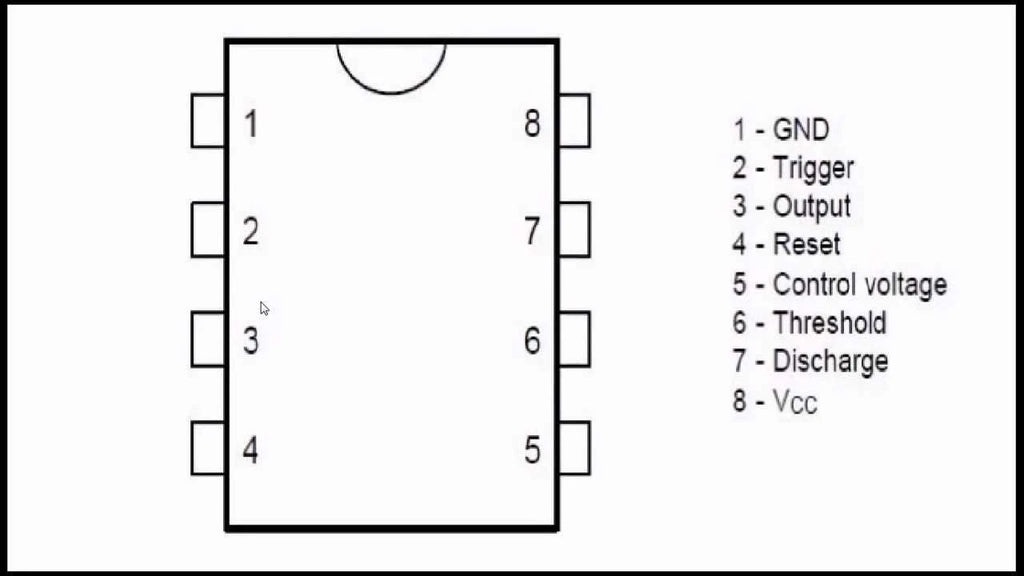

- See the device pinout drawing in the listing photo gallery
Package Includes:
10, 20, 50 or 100 Pieces (Select quantity when ordering) TI NE555P DIP-8 Timer/Oscillator ICs
Get it faster! Stocks and ships from our US Colorado office for quick delivery.
