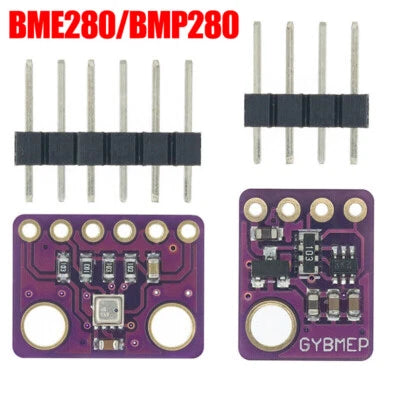

BME280/BMP280 Atmospheric Pressure Sensor Temperature Humidity Sensor Module

Bosch has stepped up their game with their new BMP280 sensor, an environmental sensor with temperature, barometric pressure that is the next generation upgrade to the BMP085/BMP180/BMP183. This sensor is great for all sorts of weather sensing and can even be used in both I2C and SPI!

This precision sensor from Bosch is the best low-cost, precision sensing solution for measuring barometric pressure with ±1 hPa absolute accuraccy, and temperature with ±1.0°C accuracy. Because pressure changes with altitude, and the pressure measurements are so good, you can also use it as an altimeter with ±1 meter accuracy

BME280, the precision sensor from , is soldered onto PCB.

Not only the pressure and the temperature, this sensor can measure humidity.

It uses both I2C and SPI (supports 3-, 4-wire SPI) interface

Specifications:

Supply Voltage: 1.8 - 5V DC

Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)

Operational Range:

Temperature: -40 to +85°C

Humidity: 0-

Pressure: 300-1100 hPa

Resolution:

Temperature: 0.01°C

Humidity: 0.008%

Pressure: 0.18Pa

Accuracy:

Temperature: +-1°C

Humidity: +-3%

Pressure: +-1Pa

I2C address

SDO LOW : 0x76

SDO HIGH: 0x77
